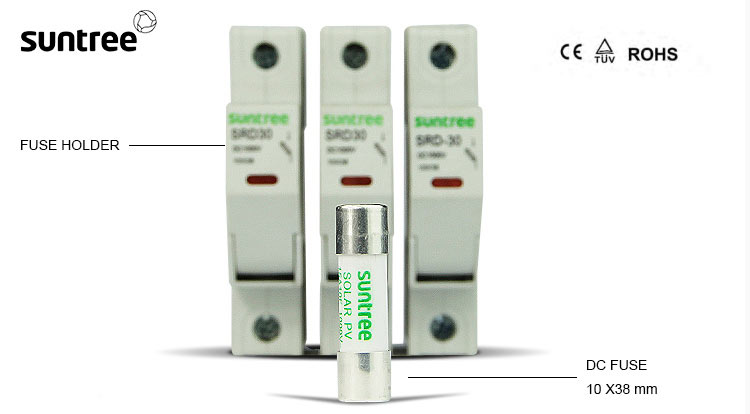

6 amp Micro Thermal Fuse and Fuse Holder for Solar System
Product Introduction
1. A range of 10x38mm fuse links specifically designed for
protecting photovoltaic strings. These fuse links are capable of
interrupting low overcurrents associated with faulted photovoltaic
string arrays (reverse current, multi-array fault).
2. DC Fuse mainly used in DC combiner box in solar PV systems. When
PV panel or imverter caused overload or short circuit, it trip off
immediately, to protect PV panels, DC fuse aslo used to protect
other electrical parts in DC circuit, when overload or short
circuit.
Parameters
Type
SRD-30
Fuse size
10 x 38mm
Poles
1P
Rated voltage
DC 1000V
rated current
1,2,3,4,5,6,8,10,12,15,20,25,30amp
short-circuit breaking capacity
33KA
max power attenuation
3.5W
protection grade
IP20
connection
2.5-10mm2
operation ambient temperature
-30~+70°C
Resistance and damp hot
Class 2
elevation
≤ 2000
installation way
TH35-7.5/DIN35 Rail installation
RH(relative air humidity)
when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
pollution class
3
installation environment
the place of no abvious vibrate & impact
installation class
Ⅲ
WxHxL
W18 x H89 x L90mm
Weight(kg)
0.07
Application
1. Photovoltaic system fuse accord with UL248-1 standard. 2. Photovoltaic battery dc fuse designed to used for photovoltaic
(PV) system. 3. Main effect is to protect the solar panels. Solar panels points
in effective condition is broken,. 4. Fault light cells break points at the same time, does not affect
other normal work of light from
the stack. 5. Technical Data Rated coltage:DC1000V Breaking capacity:25KA
Function level:PV.
