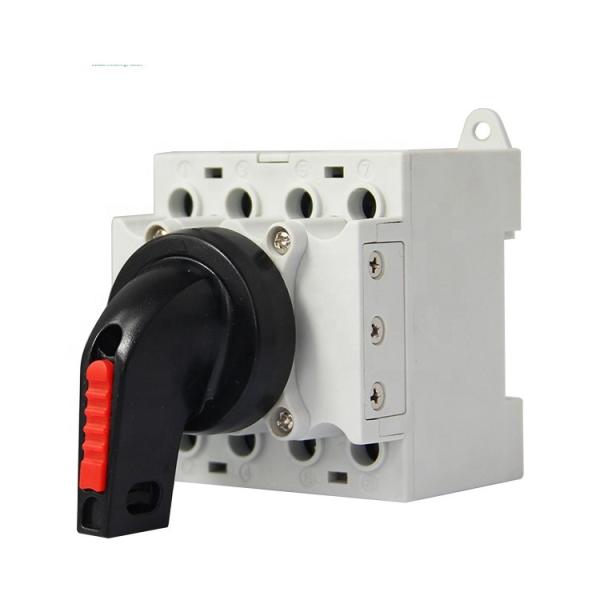

SISO-40 Series DC 1200V Rotary Isolator Switch Disconnector for Solar PV System

Product Description

1. UV resistant IP66 enclosure
2. Extremely short power shut off time of approx. 2ms
3. Lid only removable in 'off' position
4. Earth terminal
5. IEC60947-3, AS/NZS 3947.3:2001
6. DC21B 10A to 32A up to DC1200V
7. Easy to install
8. DC Isolator switch with MC4 connector
9. DIN Rail Mounting Type Solar Isolator Switch / PV Isolator / DC Isolator

Product Parameters

Product Type	Isolator Inner Core
Rated current	10A,16A, 20A, 25A,32A
Rated voltage	DC 1000V
IP rating	IP66
Standard	IEC60947-3
Certificate	CE/TUV/IEC/ROHS
Connection type	M20 M25 MC4
Working temperature	-5℃~+60℃

Detailed Images

Generally speaking, the voltage on DC side of PV system usually is higher, could be as high as 1000VDC. So we need switchgear of Ue=1000VDC. The branch circuit in combiner box needs protection, while the main circuit equipments in combiner box and DC cabinet need isolating function.

1. DIN Rail Mounting Type solar DC Isolator switch with load of 1000VDC or remote operation function. In addition, it needs to install switchgear.

2. On DC side of inverter cabinet to switch with loads, plays a role of isolation for overhauling. DC Isolator switch with MC4 connector.

3.DC Isolator switch with MC4 connector. SISO-32 DIN Rail Mounting Type Solar Isolator Switch / PV Isolator / DC Isolator.

Application

1. Compact and suitable where space is limited
2. DIN rail mounting for easy installation
3. Load-breaking up to 8 times rated current making it ideal for motor isolation
4. Double-break with silver rivets - superior performance, reliability and long lasting
5. Padlockable handle - tamper-proof
6. Highly visible red/yellow handle of 1000V DC 4 Phases Isolator Switch
7. With MC4 solar connector. Or DIN Rail Mounting Type Solar Isolator Switch PV DC Isolator switch.
