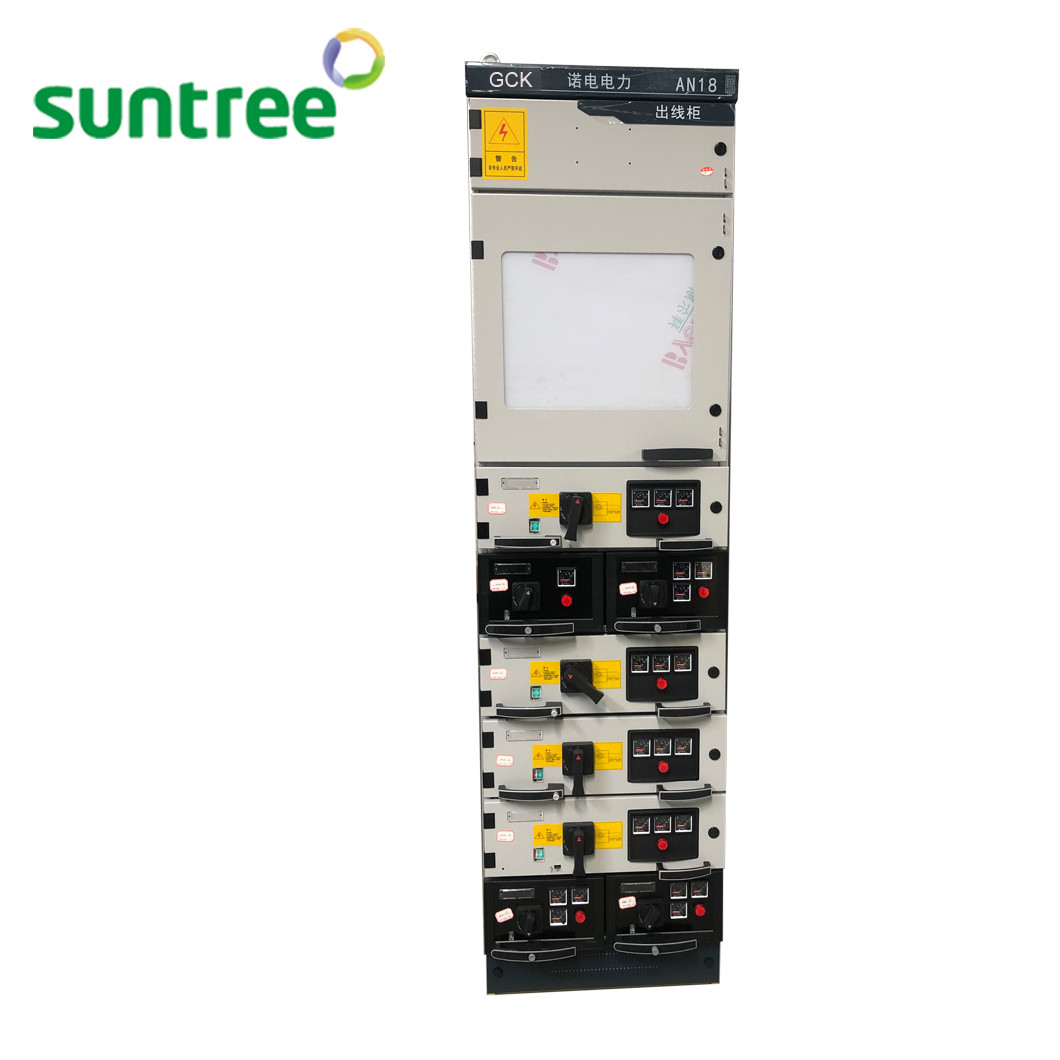

GCK Withdrawable Entry And Exit Power Distribution Cabinet Low Voltage

GCK Indoor Low Voltage Withdrawable Swithgear

Production description :

GCK type switchgear is suitable for three-phase AC 50 /60HZ, max voltage 660V, rated current to 3150A system and three-phase four-wire and three-phase five-wire,

Compared with the GCS cabinet, which has a maximum of 11 module small drawers and a minimum unit of 1/2, and the MNS cabinet, which has a maximum of 9 module small drawers and a minimum unit of 1/4,

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 "Low voltage complete switch device " national standards and ZBK36001-89 "low voltage withdraw type complete switch device" professional standards"

GCK Withdrawable Entry And Exit Power Distribution Cabinet Low Voltage

Production code :

Technical specification

Model	Item			Specification
GCK	Standard			IEC 439-1,GB7251-1
	IP grade			IP30
	Rated operational voltage(V)			AC 360,600
	Frequency(Hz)			50/60
	Rated insulation voltage(V)			660
	Operating conditions	Environment		Indoor
	Control motor capacity(kW)			0.45~155
	Mechanical life(times)			500
	Rated current(A)	Horizontal bus		1600,2000,2500,3150
		Vertical bus		630,800
		Main circuit contact connector		200,400,630
		Auxiliary circuit contact connector		10,20
		Maximum current of feed circuit	PC cabinet	1600
			MCC cabinet	630
		Electric circuit		1000,1600,2000,2500,3150
	Rated short-time withstand current(kA)			30,50,80
	Rated peak withstand current(kA)			63,105,176
	Withstand Voltage(V/min)			2500

Sevice condictions :

Normal service conditions of switchgear as follows:
Ambient temperature:
Maximum	+40°C
Maximum 24 hour average	+35°C
Minimum (according to minus 15 indoor classes)	-5°C
Ambient humidity:
Daily average relative humidity	less than 95%
Monthly average relative humidity	less than 90%
Earthquake intensity	less than 8 degree
Height above sea level	less than 2000m

This product should not be used under conditions of fire, explosion, earthquake and chemical corrosion environments.

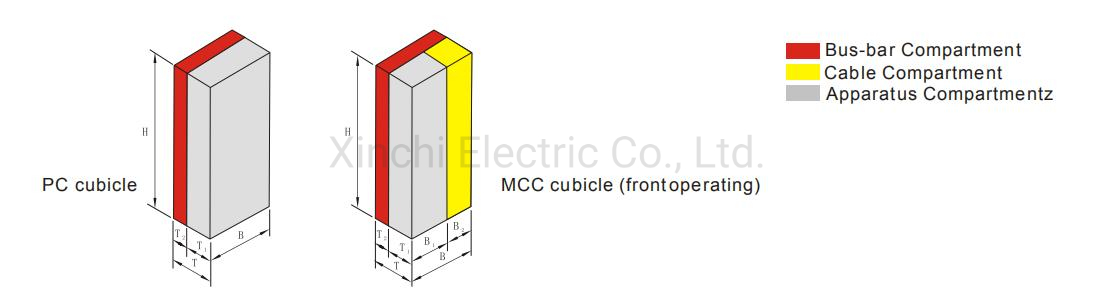

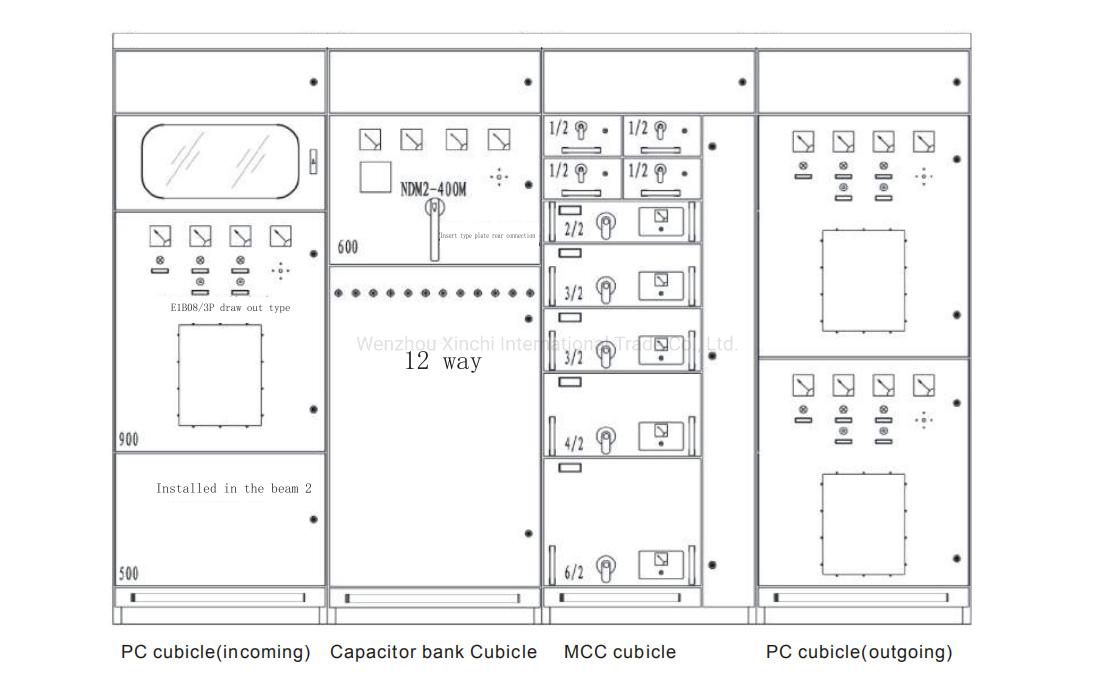

Structure diagram:
