MCB 32A Suntree 4 Pole TUV AC Circuit Breakers

Ask Lasest Price
Brand Name :	SUNTREE
Model Number :	SCB8T-80H
Supply Ability :	4000 Pack/Packs per Month
Price :	$1.50 - $15.00 / Piece

Add to Cart

Product Details
Company Profile

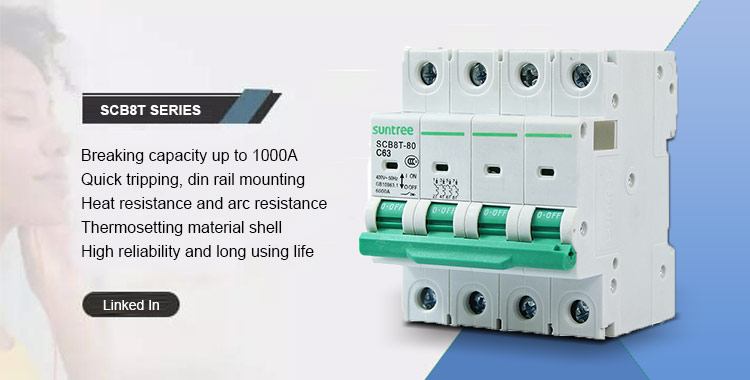

MCB 32A Suntree 4 Pole TUV AC Circuit Breakers

MCB 32ASuntree Manufacturer 4 Pole with TUV CE SAA Certificate

Product Description

1. Themosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resistance

2. Beautiful appearance, exquisite results, quick tripping, din rail mounting

3. Breaking capacity up to 10000A

4. Optimal design for contact system and trip mechanism

5. Special arc-extinguishing design, More perfect

6. High reliability and long use life

Product Parameters

Type	SCB8T-80
Poles	1P/2P/3P/4P
Rated current	6-10-16-20-25-32-40-50-63-80A
Rated voltage	230V/400V
Characteristic capacity	6KA/10KA
Electrical life	6000times
Mechanical life	2000times
Curve	B,C,D
Certificate	TUV,CE,IEC,GB
Standards	IEC-60898.1
Connection terminal	Screw terminal / Pillar terminal with calmp
Connection capacity	Rigid conductor up to 25mm²
Fastening torque	2.0Nm
Installation	On symmetrical DIN rail 35mm / Panel mounting

MCB 32A Suntree 4 Pole TUV AC Circuit Breakers

Dimensions

Company Profile

XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable

,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc

Main markets:Australia,New Zealand,&other worldwide markets
