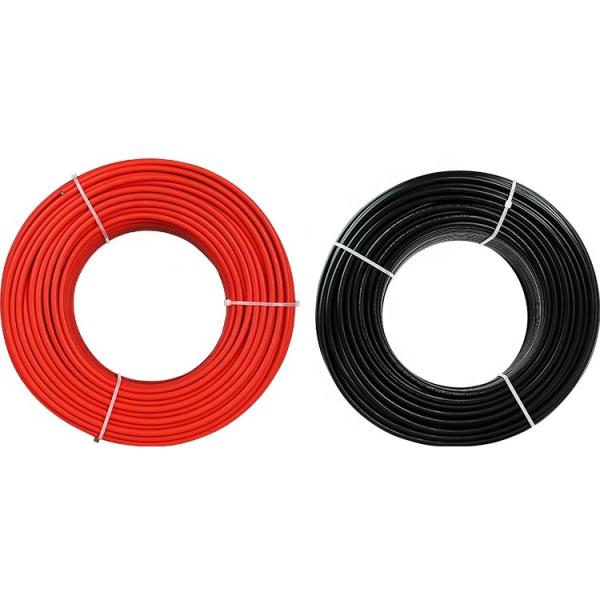

Suntree XLPE 10mm2 DC Single Core Solar Cable

Ask Lasest Price
Brand Name :	Suntree/
Model Number :	PV-1x10mm2
Supply Ability :	10000 Meter/Meters per Month
Price :	$0.56 - $3.00 / Meter

Add to Cart

Product Details
Company Profile

Suntree XLPE 10mm2 DC Single Core Solar Cable

Product Description

1. Dual wall insulation.Electron beam cross-linked

2. Excellent resistance to U.V,oil,greases,oxygen and ozone

3. Excellent resistance to abrasion

4. Halogen free, flame retardant,low toxicity

5. Excellent flexibility and stripping performance

6. High current carring capacity

7. TUV approved

Product Parameters

Single Core	Cross section mm²	Strand design No.x ø(mm)	Conductor diameter mm	Conductor diameter Ω /km	Outer diameter mm
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	4.5
PV-1*2.5 mm²	2.5	48x ø 0.25	2.0	8.06	5.3
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	4.97	6.2
PV-1*6.0 mm²	6.0	81x ø 0.3	3.3	3.52	7.2
PV-1*10.0 mm²	10.0	200x ø0.25	4.4	2.12	8.3
PV-1*16 mm²	16.0	224x ø 0.3	5.2	1.95	9.5
Twins Core
PV-2*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	5.80*9.30
PV-2*2.5 mm²	2.5	48x ø 0.25	2	8.06	6.20*9.90
PV-2*4.0 mm²	4	56x ø 0.3	2.6	4.97	6.90*11.30

Suntree XLPE 10mm2 DC Single Core Solar Cable

Product Details Show

Recommend Products

Company Profile

XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable

,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc

Main markets:Australia,New Zealand,&other worldwide markets

FAQ

Q: How can i trust you and your company ?

A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q:How long is your products warranty ?

A: The warranty period of our products is 2 Years.

Q:How about inspection?

A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q:What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.
