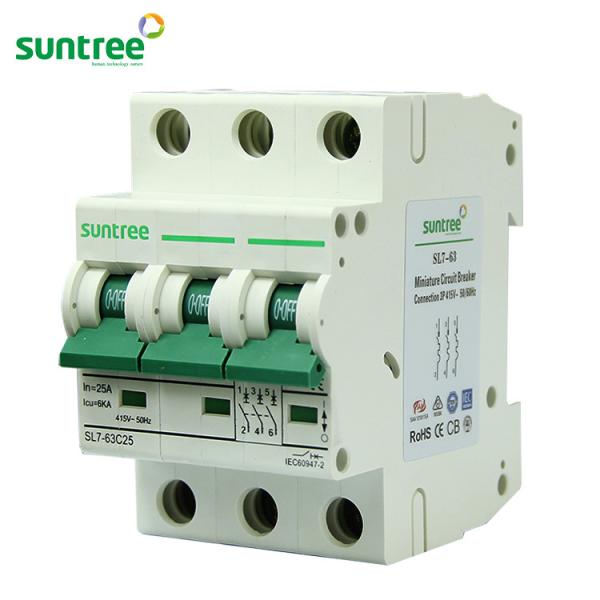

Professional Design 1-63 Amp Electrical Breaker Switch 3 Pole AC MCB Breaker Price

Product Description

SL7-63 have protective function as shotrage as overload, and are used in lighting distribution systen in connerce and dwelling, and protrect fractional electric motors. and they also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensutive action, convenient, multi pole assemnling, long life ect. They are mainly adapted to the circuit of AC 50Hz, 250V in single pole, 415V in double, threee, four poles for protecting overload abd short circuit. Mean while, ther are also used in turning on or off the electric apparatus and lighting circuit under the normal conditions.

Product Parameters

Product Type	SL7 Series
Standard	EN60898(IEC60898);IEC60947-2
Rated Current	1/2/3/4/6/10/16/20/25/32/40/50/63A
Rated Voltage	230V/250V/400BV/415V
Pole	1P/2P/3P/4P
Rated Breaking Capacity	4.5kA IEC60898(0.5-63A)
	6kA IEC60947-2(0.5-63A)
Characteristic curve	B,C,D
Max.fuse that can be connected to	100AgL>10kA
Selective grade	3
Working ambient temperature	-5°C-- +40°C
Enclosed protective class	IP20
Electrical life	Not less than 8000 times
Mechanical life	Not lesss than 20000 times

Detailed Images

Company Profile

XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable

,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc

Main markets:Australia,New Zealand,&other worldwide markets

FAQ

Q: How can i trust you and your company ?

A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q: How long is your products warranty ?

A: The warranty period of our products is 2 Years.

Q: How about inspection?

A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q: What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.

SUNTREE Electric production's AC circuit breaker, AC isolating switch, AC fuse, ATS, ACB, distribution box, busbar chamber, waterproof switch, and other products with leading technical level in this field. We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI, and CCC certification. Our products are widely used by domestic famous enterprises, and it has become an OEM partner of many international famous brands. We have fully implemented the IS09001: 2008 quality management system. It adopts advanced production equipment and precision detecting equipment, introduces the high-tech processes and high technology talents to provides a powerful guarantee for product development, quality upgrading, and management innovation of the company.
